SS A27

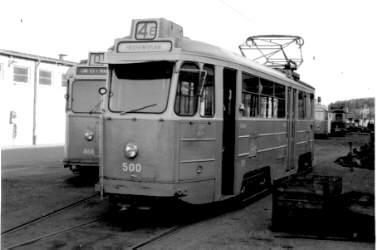

AB Stockholms Spårvägar class A27 no 490-500
"mustang"
© Anders Wirén
| data for the class A27 "mustang" | |
|---|---|
| Vehicle: | motor car, boggie |
| Class: | 4-axled single-ended (4xER) |
| Company: | AB Stockholms Spårvägar (SS) |
| Town: | Stockholm |
| Class: | A27 "mustang" |
| Car number: | 490-500 |
| Built number: | 11 |
| Manufacturer: | Hägglund 1951-1952 |
| Staffing: | fast konduktör |
| Gauage (mm): | 1435 |
| Length (mm): | 15300 |
| Width (mm): | 2340 |
| Height (mm): | 3700 |
| Weight (kg): | 16500 |
| Axel arrangement: | Bo'Bo' |
| Wheelbase (mm): | 1800 |
| Boggie center base (mm): | 6300 |
| Wheel diameter (mm): | 660 |
| Wheel tread width (mm): | 85 |
| Type of motor: | Hägglund MBL 10 |
| Motor power (kW): | 4x54 |
| Type of controller: | Hägglund CBKM-2A, kamvals |
| Type of coupling: | albert |
| Compressor: | Atlas-Copco NE3 |
| Operating current: | |
| Max speed (km/h): | |
| Door arrangement: | V 1-002-3 |
| Number of passengers: | 33 seating + 70 standing = 103 passengers |
| Out of service: |  |
| Note: | |
The history of the class (only in Swedish):
"Mustang".
Bevarad vagn: nr 500 på Museispårvägen i Malmköping.
