SS A1c

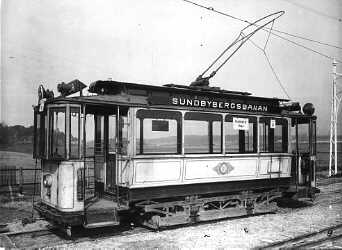

AB Stockholms Spårvägar class A1c no 18-19, 21-23, 25, 80, 93-94, 99, 102-103, 108-110
© Stockholms Spårvägsmuseum
| data for the class A1c | |
|---|---|
| Vehicle: | motor car |
| Class: | |
| Company: | AB Stockholms Spårvägar (SS) |
| Town: | Stockholm |
| Class: | A1c |
| Car number: | 18-19, 21-23, 25, 80, 93-94, 99, 102-103, 108-110 |
| Built number: | 15 |
| Manufacturer: | ASEA 1904-1906 |
| Gauage (mm): | 1435 |
| Length (mm): | 8180 |
| Width (mm): | 2150 |
| Height (mm): | 3800 |
| Weight (kg): | 10700 |
| Axel arrangement: | Bo |
| Wheelbase (mm): | 1800 |
| Boggie center base (mm): | |
| Wheel diameter (mm): | 850 |
| Wheel tread width (mm): | |
| Type of motor: | |
| Motor power (kW): | 50 |
| Type of controller: | |
| Type of coupling: | |
| Compressor: | |
| Operating current: | |
| Max speed (km/h): | |
| Door arrangement: | |
| Number of passengers: | 20 seating + 15 standing = 35 passengers |
| Out of service: |  |
| Note: | fd SNS A1 och A2. |
The history of the class (only in Swedish):
Beteckning från 1926 för ej ombyggda A1-vagnar.
Nr 80, 81, 90, 93, 94 använda som enmansvagnar 1923-1930.
Ursprung:
| A1c nr 18 | fd 8 |
| A1c nr 19 | fd 53 |
| A1c nr 21 | fd 90 |
| A1c nr 22 | fd 81 |
| A1c nr 25 | fd 68 |
| A1c nr 99 | fd 106 |
