SL C9

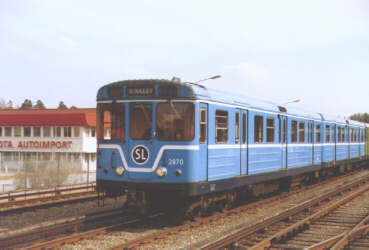

AB Storstockholms Lokaltrafik class C9 no 2863-2882
© Ingvar Andersson
| data for the class C9 | |
|---|---|
| Vehicle: | underground car |
| Class: | 4-axled single-ended (4xER) |
| Company: | AB Storstockholms Lokaltrafik (SL)  |
| Town: | Stockholm |
| Line: | Tunnelbanan |
| Class: | C9 |
| Car number: | 2863-2882 |
| Built number: | 20 |
| Manufacturer: | ASEA, Hägglund 1976-1977 |
| Gauage (mm): | 1435 |
| Length (mm): | 17400 |
| Width (mm): | 2800 |
| Height (mm): | 3780 |
| Weight (kg): | 25000 |
| Axel arrangement: | Bo'Bo' |
| Wheelbase (mm): | 2300+8700 |
| Boggie center base (mm): | 11000 |
| Wheel diameter (mm): | 864 |
| Wheel tread width (mm): | |
| Type of motor: | ASEA LJB 29 - X |
| Motor power (kW): | 400 |
| Type of controller: | |
| Type of coupling: | |
| Compressor: | |
| Operating current: | |
| Max speed (km/h): | 90 |
| Door arrangement: | |
| Number of passengers: | 48 seating + 110 standing = 158 passengers |
| Out of service: |  2009 |
| Note: | |
The history of the class (only in Swedish):
Tyristorutrustning, permanent parkopplade.
Alla vagnar ommålade ca 1999-2000 och 2005 i blått med bred vit linje. Alla vagnar var från början blå med smal vit linje.
