NS M97 (II)

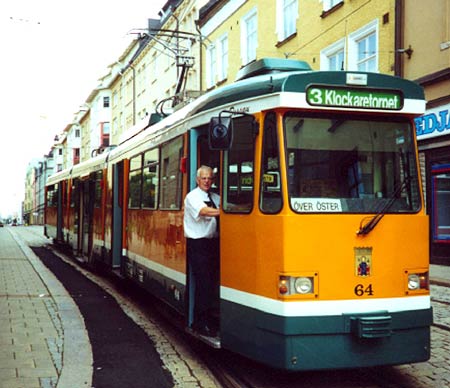

Norrköping Spårvägar class M97 (II) no 61-70
© Willy Forsström
| data for the class M97 (II) | |
|---|---|
| Vehicle: | motor car |
| Class: | 8-axled articulated single-ended (8xGelER) |
| Company: | Norrköping Spårvägar (NS) |
| Town: | Norrköping |
| Class: | M97 (II) |
| Car number: | 61-70 |
| Built number: | 10 |
| Manufacturer: | Düwag, Kiepe, NME 1966-1967 |
| Gauage (mm): | 1435 |
| Length (mm): | 25645 |
| Width (mm): | |
| Height (mm): | |
| Weight (kg): | 25000 |
| Axel arrangement: | Bo'2'2'Bo' |
| Wheelbase (mm): | 1800 |
| Boggie center base (mm): | 6000 |
| Wheel diameter (mm): | 670 |
| Wheel tread width (mm): | |
| Type of motor: | BBC |
| Motor power (kW): | 240 |
| Type of controller: | |
| Type of coupling: | |
| Compressor: | |
| Operating current: | |
| Max speed (km/h): | |
| Door arrangement: | |
| Number of passengers: | 57 seating + 198 standing = 255 passengers |
| Out of service: | |
| Note: | |
The history of the class (only in Swedish):
Fd Dessau och DVG köpta 1997.
Fd NS M94 nr 61-71.
Before this
| M97 | ursprung | inköpt | fd M94 | efter 1995 | |
|---|---|---|---|---|---|
| 61 | DVG 1075 | 1994 | M94 175 | M94 61 | först nr 60 |
| 62 | DVG 1062 | 1994 | M94 162 | M94 62 | |
| 63 | DVG 1064 | 1994 | M94 164 | M94 64 | 1999-2000 nr 71 |
| 64 | Dessau 014, DVG 1059 | 1997 | fd nr 72 | ||
| 65 | DVG 1065 | 1994 | M94 165 | M94 65 | |
| 66 | DVG 1066 | 1994 | M94 166 | M94 66 | |
| 67 | DVG 1067 | 1995 | M94 67 | M94 67 | |
| 68 | DVG 1072 | 1994 | M94 172 | M94 68 | |
| 69 | DVG 1074 | 1994 | M94 69 | M94 69 | |
| 70 | DVG 3070 | 1996 | M94 70 | M94 70 | |
| 72 | Dessau 014, DVG 1059 | 1997 | senare nr 64 | ||
| 73 | Dessau 013, DVG 1058 | 1997 | fram- o bakdel skänkt 2001 till Skjoldenæsholm, mittdel skrotad | ||
| 74 | Dessau 011, DVG 1056 | 1997 | framdel skänkt 2001 till Skjoldenæsholm, bakdel skrotad | ||
| 75 | Dessau 008, DVG 1053 | 1997 |
