SL C15

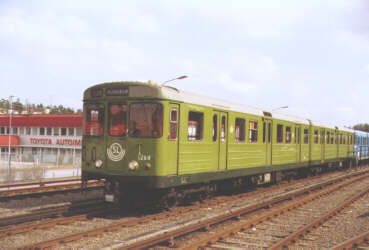

AB Storstockholms Lokaltrafik class C15 no 1260-1273
© Ingvar Andersson
| data for the class C15 | |
|---|---|
| Vehicle: | underground car |
| Class: | 4-axled single-ended (4xER) |
| Company: | AB Storstockholms Lokaltrafik (SL)  |
| Town: | Stockholm |
| Line: | Tunnelbanan |
| Class: | C15 |
| Car number: | 1260-1273 |
| Built number: | 14 |
| Manufacturer: | ASEA, Hägglund 1985 |
| Gauage (mm): | 1435 |
| Length (mm): | 17320 |
| Width (mm): | 2800 |
| Height (mm): | 3780 |
| Weight (kg): | 25000 |
| Axel arrangement: | Bo'Bo' |
| Wheelbase (mm): | 2300+8700 |
| Boggie center base (mm): | 11000 |
| Wheel diameter (mm): | 864 |
| Wheel tread width (mm): | |
| Type of motor: | ASEA LJB 29 - X |
| Motor power (kW): | 440 |
| Type of controller: | |
| Type of coupling: | |
| Compressor: | |
| Operating current: | |
| Max speed (km/h): | 80 |
| Door arrangement: | |
| Number of passengers: | 48 seating + 108 standing = 156 passengers |
| Out of service: |  2023 |
| Note: | |
The history of the class (only in Swedish):
Permanent parkopplade.
Vagn 1267 var provvagn ca 1991-1993 asynkronmotor, 44 sittplatser.
Vagnarna 1270-1273 hyttombyggda 1998 med ändrade förarhytter, internt littera beteckning C15H.
Alla vagnar fick blå färgsättning mellan 1998-2001, från början grön färgsättning.
