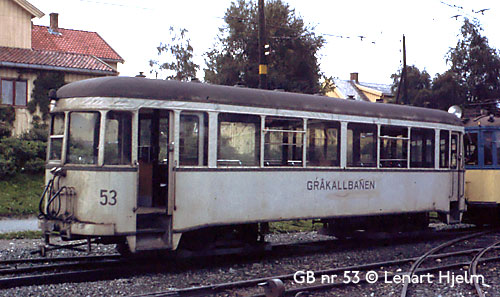

AS Graakalbanen class (sv) no 53-54
© Lennart Hjelm
data for the class (sv) | |
---|---|
Vehicle: | trailer car |
Class: | 4-axled double-ended (4xZR) |
Company: | AS Graakalbanen (GB) |
Town: | Trondheim |
Line: | Graakalbanen |
Class: | (sv) |
Car number: | 53-54 |
Built number: | 2 |
Manufacturer: | Skabo 1947 |
Gauage (mm): | 1000 |
Length (mm): | 13000 |
Width (mm): | 2600 |
Height (mm): | |
Weight (kg): | 12000 |
Axel arrangement: | |
Wheelbase (mm): | 2000 |
Boggie center base (mm): | 6300 |
Wheel diameter (mm): | 800 |
Wheel tread width (mm): | |
Type of motor: | |
Motor power (kW): | |
Type of controller: | |
Type of coupling: | |
Compressor: | |
Operating current: | 600 V DC |
Max speed (km/h): | |
Door arrangement: | |
Number of passengers: | 40 seating + 50 standing = 90 passengers |
Out of service: | 1973 |
Note: |
The history of the class (only in Swedish):
Omnummert til 73-74 i 1971.
