OS E1
AS Oslo Sporveier class E1 no 164-183
"gullfisk"

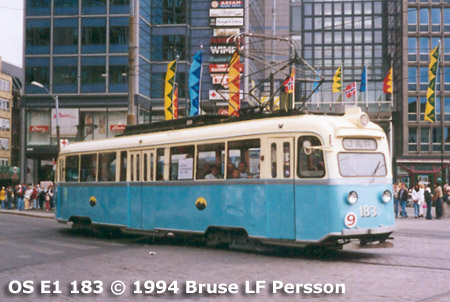

© Bruse LF Persson
| data for the class E1 "gullfisk" | |
|---|---|
| Vehicle: | motor car |
| Class: | 4-axled single-ended (4xER) |
| Company: | AS Oslo Sporveier (OS)  |
| Town: | Oslo |
| Class: | E1 "gullfisk" |
| Car number: | 164-183 |
| Built number: | 20 |
| Manufacturer: | Skabo, Elin 1939 |
| Gauage (mm): | 1435 |
| Length (mm): | 15400 |
| Width (mm): | 2200 |
| Height (mm): | |
| Weight (kg): | 15400 |
| Axel arrangement: | Bp'Bo' |
| Wheelbase (mm): | 1850 |
| Boggie center base (mm): | 8300 |
| Wheel diameter (mm): | 680 |
| Wheel tread width (mm): | |
| Type of motor: | |
| Motor power (kW): | 148 |
| Type of controller: | |
| Type of coupling: | |
| Compressor: | |
| Operating current: | 600 V DC |
| Max speed (km/h): | 65 |
| Door arrangement: | |
| Number of passengers: | 44 seating + 48 standing = 92 passengers |
| Out of service: | 1985 |
| Note: | |
The history of the class (only in Swedish):
Vognene 166, 170 og 183 er bevart som museumsvogner.
Resten er utrangert.
