OS T3

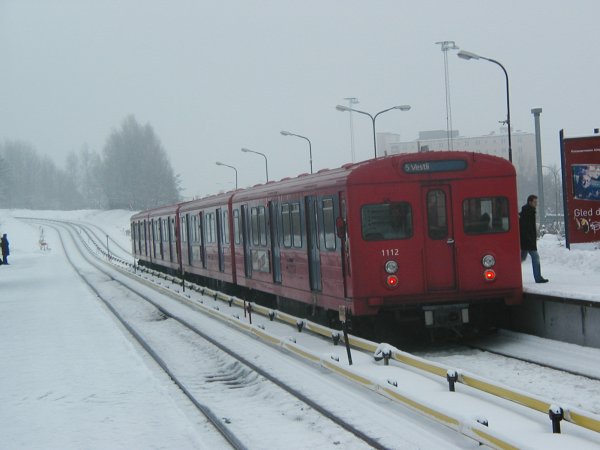

AS Oslo Sporveier class T3 no 1106-1135
© Andreas Tunem Arnestad
| data for the class T3 | |
|---|---|
| Vehicle: | underground car |
| Class: | |
| Company: | AS Oslo Sporveier (OS)  |
| Town: | Oslo |
| Line: | T-banen |
| Class: | T3 |
| Car number: | 1106-1135 |
| Built number: | 30 |
| Manufacturer: | Strømmen, AEG 1969-1972 |
| Gauage (mm): | 1435 |
| Length (mm): | 17000 |
| Width (mm): | 3200 |
| Height (mm): | |
| Weight (kg): | 29740 |
| Axel arrangement: | Bo`Bo` |
| Wheelbase (mm): | 2170 |
| Boggie center base (mm): | 11000 |
| Wheel diameter (mm): | 820 |
| Wheel tread width (mm): | |
| Type of motor: | |
| Motor power (kW): | 392 |
| Type of controller: | |
| Type of coupling: | |
| Compressor: | |
| Operating current: | 750 V DC |
| Max speed (km/h): | 70 |
| Door arrangement: | |
| Number of passengers: | 63 seating + 117 standing = 180 passengers |
| Out of service: |  |
| Note: | Parkopplade Fast koblet på følgende måte: 1107-1108 til og med 1133-1134 1106 går koblet med T2 1105 1135 går koblet med T4 1136 |
